Specifications for

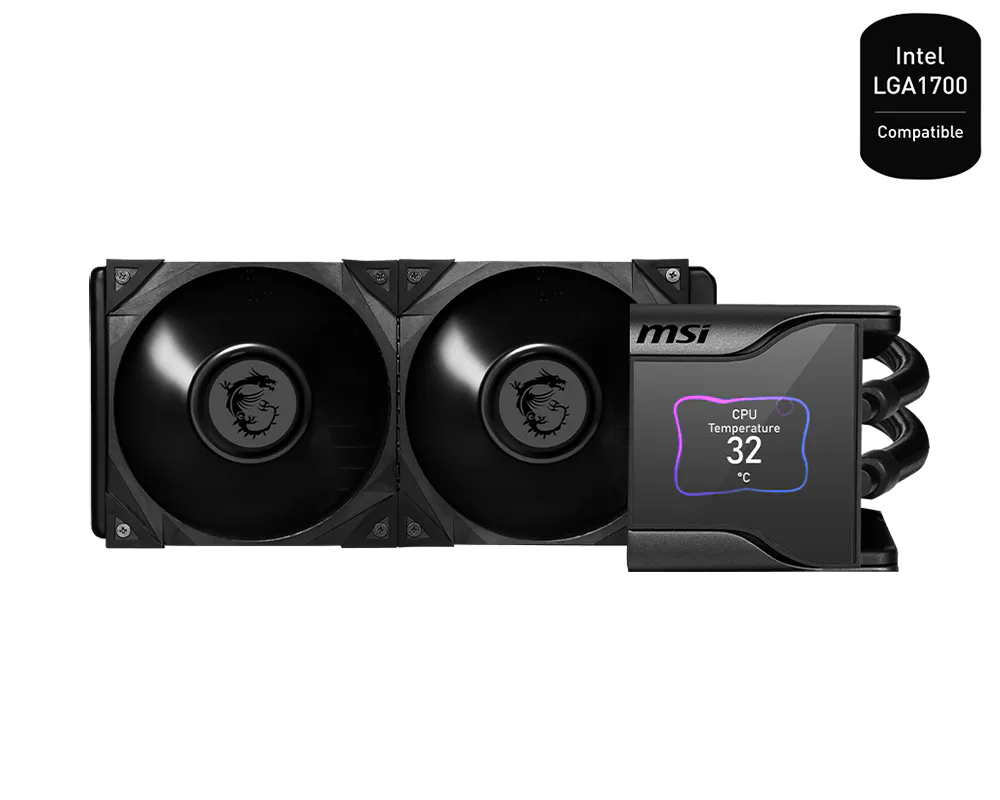

MEG CORELIQUID S280
Number of Fans
Number of Fans
2
Radiator Dimensions (WxDxH)
Radiator Dimensions (WxDxH)
314.8 x 140 x 27mm / 12.39 x 5.51 x 1.06 inches
Fan Speed
Fan Speed
0 ~ 1800 RPM
Radiator Material
Radiator Material
Aluminum
Fan Power Consumption
Fan Power Consumption
6 W
Fan Rated Current
Fan Rated Current
0.5 A
Fan Life Expectancy
Fan Life Expectancy
50,000 Hours
Fan Dimensions (WxDxH)
Fan Dimensions (WxDxH)
140 x 140 x 25mm / 5.51 x 5.51 x 0.98 inches
Fan Bearing
Fan Bearing
Hydro-Dynamic Bearing
Fan Air Flow
Fan Air Flow
82.27 CFM
Fan Noise Level
Fan Noise Level
24.9 dBA
PWM Mode
PWM Mode
Yes
Fan Cable Length (5V ARGB / PWM cable)
Fan Cable Length (5V ARGB / PWM cable)
350mm; 13.78 inches
Radiator Dimensions
Radiator Dimensions
314.8 x 140 x 27mm / 12.39 x 5.51 x 1.06 inches
Cable Length (PWM Cable)
Cable Length (PWM Cable)
350mm; 13.78 inches
Block Dimensions
Block Dimensions
95 x 95 x 54 mm
Pump Life Expectancy
Pump Life Expectancy
50,000 Hours
Pump Noise Level
Pump Noise Level
21.2 dBA
Pump Power Consumption
Pump Power Consumption
4W
Pump Speed
Pump Speed
PWM controlled; 100% duty cycle w/ 2800 +/-300 RPM
Block Dimensions (WxDxH)
Block Dimensions (WxDxH)
95 x 95 x 54 mm
Intel Socket Support
Intel Socket Support
LGA 1150/1151/1155/1156/1200/1700
LGA 2011/2011-3/2066
LGA 2011/2011-3/2066
AMD Socket Support
AMD Socket Support
AM4/FM2+/FM2/FM1/AM3+/AM3/AM2+/AM2
Intel Socket
Intel Socket
LGA 1150/1151/1155/1156/1200/1700
LGA 2011/2011-3/2066
LGA 2011/2011-3/2066
AMD Socket
AMD Socket
AM4/FM2+/FM2/FM1/AM3+/AM3/AM2+/AM2
